Harley Topper Club. did you know Toppers started selling in 1960
Starter Assembly

webm...@harleytopperclub.com



Click on Images to view parts.
And in the supplement part numbers at the bottom
click to view some of the images.

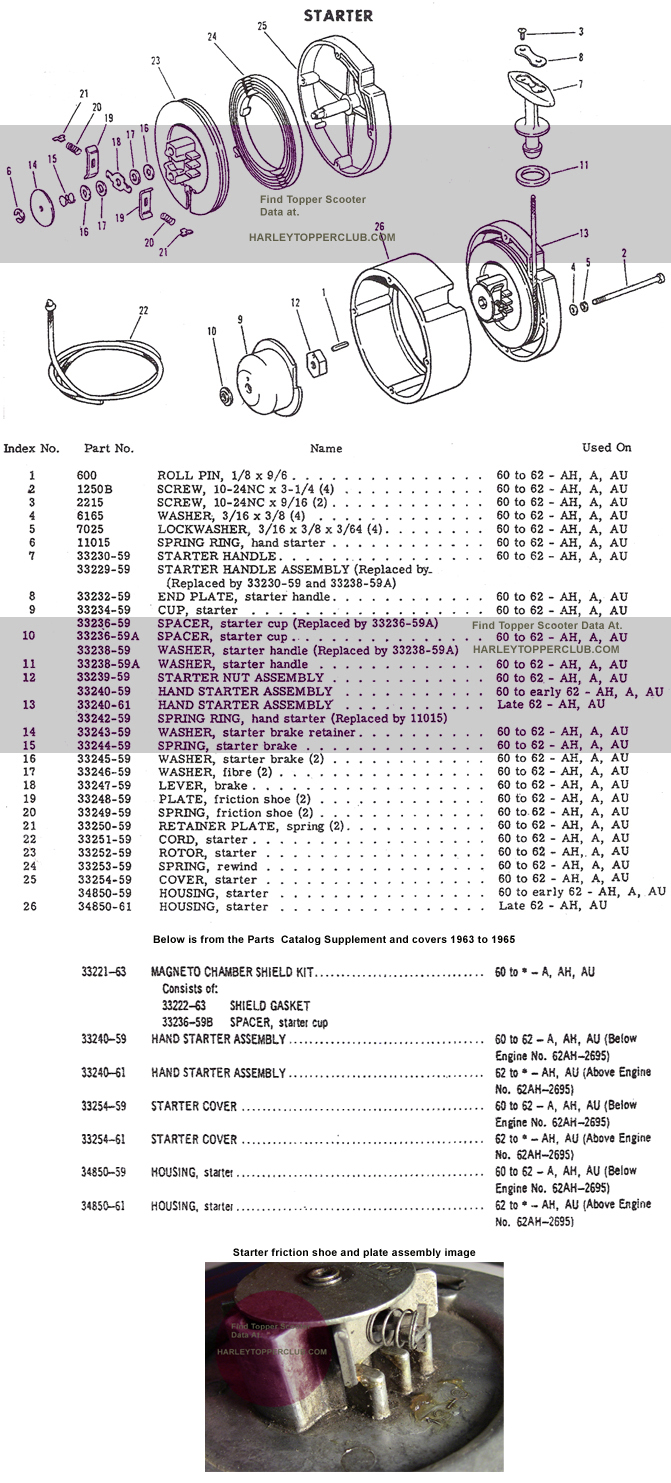

Click on any of the parts and view images of the Harley Topper Scooter Starter Assembly 11015 hand starter spring ring 33243-59 Starter brake retainer washer 33244-59 Starter Brake Spring 33250-59 Plate spring retainer 33249-59 Friction shoe spring 33248-59 Friction Shoe Plate 33248-59 Friction Shoe Plate 33250-59 Plate spring retainer 33245-59 Starter brake washer 33245-59 Starter brake washer 33246-59 Fibre Washer 33246-59 Fibre washer 33247-59 Brake Lever 33252-59 Harley Topper Starter Rotor 33253-59 Harley Topper Rewind Spring 33254-59 Harley Topper Starter Cover early style 34850-59 Harley Topper Starter Housing early style 33230-59 Harley Topper Starter Handle 33238-59A Starter Handle Rubber Washer later style 33232-59 Starter handle end plate 2215 Starter handle end plate screw 1250B Screw 33239-59 and 600 Starter nut assembly and roll pin 33236-59B Upgrade starter cup spacer came in the magneto chamber sheild kit and covers every model from 1960 to 1965 34850-61 Starter housing fits late 1962 to 1965 AH , AU 33254-61 Starter Cover fits 1962 to 1965 AH , AU NOTICE The tangs on the cover and the early style did not have them 33221-63 Magneto Chamber Shield Kit



Did you know Harley-Davidson started an insurance company in 1960 so Topper and motorcycle owners could get insurance on their scooters.
